What is the Temperature Limit for a Single Sleeve Chimney?
As a supplier of Single Sleeve Chimneys, I often encounter questions from clients regarding the temperature limits of these essential industrial components. Understanding the temperature limits of a single sleeve chimney is crucial for ensuring its safe and efficient operation, as well as for maintaining the integrity of the entire system. In this blog post, I will delve into the factors that determine the temperature limit of a single sleeve chimney, the implications of exceeding these limits, and how to choose the right chimney for your specific application.
Factors Determining the Temperature Limit
The temperature limit of a single sleeve chimney is influenced by several key factors, each of which plays a significant role in determining the maximum temperature that the chimney can safely withstand.
Material Composition
The material used in the construction of the chimney is perhaps the most critical factor in determining its temperature limit. Single sleeve chimneys are commonly made from materials such as stainless steel, carbon steel, and refractory materials. Stainless steel is a popular choice due to its excellent corrosion resistance and high-temperature strength. Different grades of stainless steel have varying temperature limits, with some grades capable of withstanding temperatures up to 1,000°C (1,832°F) or more. Carbon steel, on the other hand, is less expensive but has a lower temperature limit, typically around 400 - 500°C (752 - 932°F). Refractory materials, such as firebrick or ceramic fiber, can withstand extremely high temperatures and are often used in applications where the chimney is exposed to very hot flue gases.
Insulation
Insulation plays a vital role in protecting the chimney from high temperatures and reducing heat loss. A well-insulated single sleeve chimney can maintain a lower outer surface temperature, which not only improves safety but also extends the lifespan of the chimney. Insulation materials can include mineral wool, ceramic fiber, or refractory insulation. The type and thickness of insulation used will depend on the specific application and the temperature of the flue gases. Adequate insulation can significantly increase the temperature limit of a single sleeve chimney by reducing the heat transfer to the outer shell.
Design and Construction
The design and construction of the chimney also affect its temperature limit. Factors such as the diameter, length, and shape of the chimney can influence the flow of flue gases and the distribution of heat. A properly designed chimney will ensure that the flue gases are evenly distributed and that there are no hot spots or areas of excessive heat concentration. Additionally, the quality of the construction, including the welding and sealing of the joints, can impact the chimney's ability to withstand high temperatures. A well-constructed chimney with tight joints and proper reinforcement will be more resistant to thermal stress and deformation.
Implications of Exceeding the Temperature Limit
Exceeding the temperature limit of a single sleeve chimney can have serious consequences, both for the chimney itself and for the overall safety and efficiency of the system.
Material Degradation
When a chimney is exposed to temperatures above its limit, the material can begin to degrade. This can lead to a loss of strength, corrosion, and cracking. In the case of stainless steel, high temperatures can cause the formation of oxide layers on the surface, which can reduce the corrosion resistance of the material. Carbon steel can experience oxidation and scaling, which can weaken the structure and lead to premature failure. Refractory materials can also be damaged by excessive heat, causing them to crack or spall.
Thermal Expansion and Contraction
High temperatures can cause the chimney to expand, and when the temperature drops, it will contract. If the chimney is not designed to accommodate these thermal movements, it can experience significant stress and deformation. This can lead to leaks, cracks, and even structural failure. In extreme cases, the chimney may collapse, posing a serious safety hazard to personnel and equipment.
Reduced Efficiency
Exceeding the temperature limit can also reduce the efficiency of the chimney. When the chimney is overheated, more heat is lost to the surroundings, which means that less heat is being used for the intended purpose. This can result in increased energy consumption and higher operating costs. Additionally, the performance of the combustion process may be affected, leading to incomplete combustion and the release of pollutants.
Choosing the Right Single Sleeve Chimney
To ensure that your single sleeve chimney can safely handle the temperatures of your application, it is essential to choose the right chimney for the job.
Evaluate Your Application
The first step is to evaluate your specific application and determine the temperature range of the flue gases. Consider factors such as the type of fuel being burned, the combustion process, and any potential variations in temperature. This will help you determine the minimum temperature limit that the chimney needs to have.
Select the Appropriate Material
Based on the temperature requirements of your application, select the appropriate material for the chimney. Stainless steel is a versatile and reliable choice for many applications, but if you need to withstand extremely high temperatures, refractory materials may be necessary. Consult with a professional chimney supplier, like us, to get expert advice on the best material for your needs.
Consider Insulation
Insulation is an important consideration, especially if you are dealing with high-temperature flue gases. Choose an insulation material that is suitable for the temperature range and that provides adequate protection. The thickness of the insulation should be determined based on the heat transfer calculations and the desired outer surface temperature.
Ensure Proper Design and Installation
Work with a qualified engineer or contractor to ensure that the chimney is properly designed and installed. The design should take into account the thermal expansion and contraction of the chimney, as well as the flow of flue gases. The installation should be carried out in accordance with the manufacturer's instructions and relevant industry standards.
Conclusion

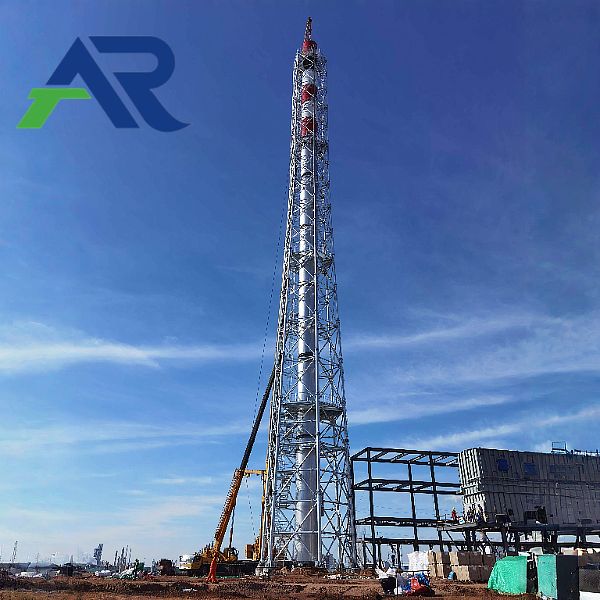

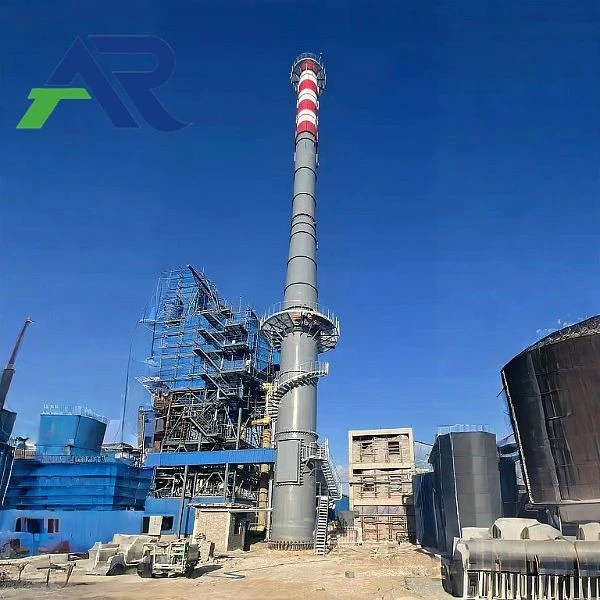

Understanding the temperature limit of a single sleeve chimney is essential for ensuring its safe and efficient operation. By considering the factors that determine the temperature limit, such as material composition, insulation, and design, you can choose the right chimney for your application and avoid the risks associated with exceeding the temperature limit. As a [your role] at [your company], I am committed to providing high-quality Single Sleeve Chimney solutions that meet the specific needs of our clients. If you have any questions or need assistance in selecting the right chimney for your project, please do not hesitate to contact us. We are here to help you make the best decision and ensure the success of your operation. Whether you are looking for a Multi-sleeve Chimney or a Stainless Steel Factory Chimney, we have the expertise and experience to provide you with the right solution.
