As a supplier of Single Sleeve Chimneys, I understand that many customers are curious about the installation requirements for these outdoor chimneys. In this blog post, I'll delve into the key aspects that need to be considered when installing an outdoor single sleeve chimney, ensuring you have a comprehensive understanding of the process.
1. Location Selection
The first and foremost step in installing an outdoor single sleeve chimney is choosing the right location. This decision can significantly impact the chimney's performance and safety.
Distance from Structures
The chimney should be installed at a safe distance from any combustible structures. Typically, it should be at least 10 feet away from wooden buildings, decks, or other flammable materials. This distance helps prevent heat transfer and reduces the risk of fire. For instance, if there is a wooden shed nearby, installing the chimney too close could cause the shed's surface to heat up and potentially catch fire.
Clearance from Trees
It's also crucial to ensure there is enough clearance from trees. Branches can interfere with the chimney's operation and pose a fire hazard if they come into contact with hot flue gases. A clearance of at least 10 feet horizontally and 3 feet vertically from any overhanging branches is recommended.
Wind Exposure
The location should be chosen to minimize the impact of strong winds. Strong winds can disrupt the draft of the chimney, leading to poor ventilation and inefficient operation. A sheltered area, such as behind a building or a windbreak, can be ideal. However, make sure that the chimney still has enough air circulation to function properly.
2. Foundation Requirements
A stable foundation is essential for the proper installation of an outdoor single sleeve chimney.
Load - Bearing Capacity
The foundation must be able to support the weight of the chimney. The weight of a single sleeve chimney can vary depending on its size and material. For example, a larger chimney made of heavier materials will require a more robust foundation. The foundation should be designed to handle the static load of the chimney as well as any additional loads, such as wind or seismic forces.
Levelness
The foundation should be perfectly level. An uneven foundation can cause the chimney to tilt, which can lead to structural damage over time and affect its performance. Before installing the chimney, use a level to ensure that the foundation surface is flat.
Material Selection
Common materials for chimney foundations include concrete and masonry. Concrete is a popular choice due to its strength and durability. It can be poured into a form to create a solid base for the chimney. Masonry foundations, made of bricks or stones, can also be used, but they need to be properly constructed to ensure stability.
3. Chimney Height and Diameter
The height and diameter of the single sleeve chimney play a crucial role in its performance.
Height
The chimney height should be sufficient to create a proper draft. A taller chimney generally creates a stronger draft, which helps in the efficient removal of flue gases. The height is often determined by the type of appliance it is connected to and the local building codes. In general, the chimney should extend at least 3 feet above the highest point where it passes through the roof and 2 feet higher than any part of the building within 10 feet horizontally.
Diameter
The diameter of the chimney should match the requirements of the connected appliance. A chimney that is too small in diameter can restrict the flow of flue gases, leading to poor ventilation and potentially dangerous back - drafting. On the other hand, a chimney that is too large may not create a strong enough draft. Consult the appliance manufacturer's specifications to determine the appropriate chimney diameter.
4. Connection to the Appliance
Proper connection between the single sleeve chimney and the appliance is vital for safe and efficient operation.
Sealing
The connection point between the chimney and the appliance should be well - sealed to prevent the leakage of flue gases. Flue gases can contain harmful substances such as carbon monoxide, so a tight seal is essential for safety. Use high - temperature sealants or gaskets to ensure a proper seal.
Alignment
The chimney and the appliance should be properly aligned. Misalignment can cause poor draft and uneven wear on the chimney components. Follow the installation instructions provided by the appliance and chimney manufacturers to ensure correct alignment.
Clearance
Maintain the recommended clearance between the chimney and the appliance. This clearance is necessary to prevent heat transfer and reduce the risk of fire. The clearance requirements can vary depending on the type of appliance and the chimney material.
5. Ventilation and Draft
Good ventilation and a proper draft are essential for the effective operation of an outdoor single sleeve chimney.
Natural Draft
Most single sleeve chimneys rely on natural draft to remove flue gases. Natural draft is created by the difference in temperature between the hot flue gases inside the chimney and the cooler outside air. To ensure a strong natural draft, the chimney should be insulated properly to maintain the high temperature of the flue gases.
Obstructions
Check for any obstructions inside the chimney before installation. Debris, such as leaves or dirt, can block the flow of flue gases and reduce the draft. Regular maintenance should also include checking for blockages to ensure continuous operation.
6. Safety Considerations
Safety is of utmost importance when installing an outdoor single sleeve chimney.
Fire Protection
Install a spark arrestor at the top of the chimney to prevent sparks from escaping and starting a fire. A spark arrestor is a mesh screen that catches hot embers and prevents them from being carried by the wind.
Insulation
Insulate the chimney to reduce the risk of heat transfer to surrounding combustible materials. Insulation also helps in maintaining the draft and improving the efficiency of the chimney.
Inspection
Before using the chimney, have it inspected by a professional to ensure that it has been installed correctly and meets all safety standards. Regular inspections should also be carried out during its operation to detect any potential issues early.
7. Comparison with Other Chimney Types

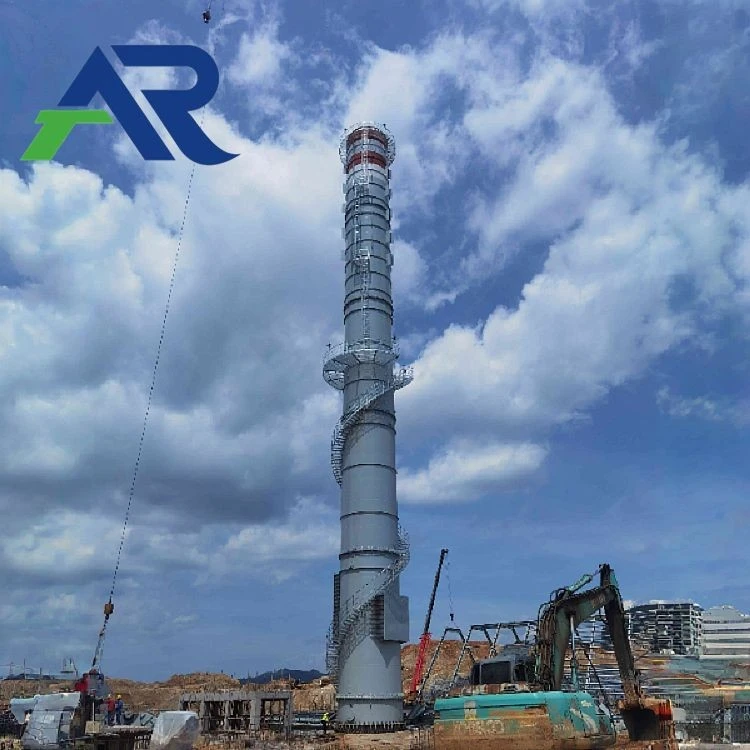

When considering an outdoor chimney, it's worth comparing the single sleeve chimney with other types, such as Multi - sleeve Chimney and Stainless Steel Factory Chimney.
Multi - sleeve chimneys offer better insulation and can handle multiple flue gases simultaneously. They are more suitable for complex heating systems. Stainless steel factory chimneys are known for their durability and corrosion resistance, making them ideal for industrial applications. However, single sleeve chimneys are often more cost - effective and easier to install, making them a popular choice for residential and small - scale commercial applications.
If you are interested in our Single Sleeve Chimney products, we invite you to contact us for procurement and further discussions. Our team of experts is ready to assist you with any questions you may have and provide you with the best solutions for your chimney needs.
References
- International Residential Code (IRC)
- National Fire Protection Association (NFPA) standards
- Chimney Manufacturers' Association guidelines
