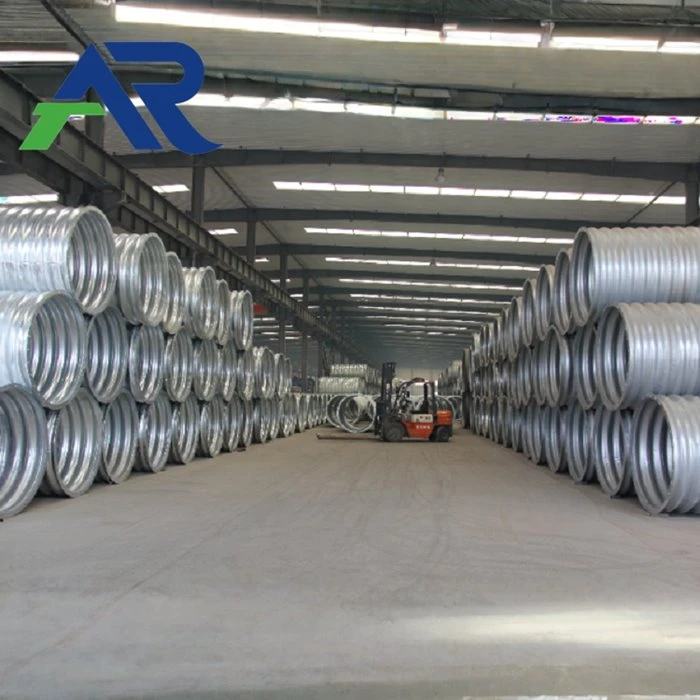

The galvanized corrugated pipe is formed from galvanized steel plates with a corrugated profile. It is widely used in road drainage, railway culverts, mine passages, urban drainage, agricultural water channels, and temporary or permanent underground structures. The corrugated wall helps the pipe resist deformation under soil pressure, while the galvanized layer gives the steel surface basic corrosion protection. Compared with cast-in-place concrete, this pipe can be transported in sections and assembled faster on site, so it is useful when the project has tight access, short construction time, or limited curing conditions.
Product Parameters
|
Parameter |
Details |
|
Steel option |
Galvanized steel, aluminum-zinc coated steel, or weathering steel |
|
Common shapes |
Round, ellipse, arch, and plate-assembled forms |
|
Surface protection |
Galvanized layer with optional epoxy or asphalt coating |
|
Section length |
Customized by transport size and site lifting condition |
|
Use environment |
Road culvert, drainage, tunnel diversion, mine corridor, municipal passage |
|
Connection |
Bolted flanges, lap joints, or plate assembly by design |
Installation Notes
1. The base should be leveled before pipe sections are placed because uneven support may create local stress.
2. Bolts should be tightened in order, and joint sealing should be checked before backfilling.
3. For a galvanized corrugated pipe, backfill should be placed on both sides evenly to avoid side deformation.
Use Notes
1. Water flow direction, sediment risk, and outlet protection should be checked before the final layout.
2. If the site has acid soil or strong salt content, extra coating should be discussed before production.
3. Inspection space at both ends helps workers clean silt and check the pipe wall after heavy rain.
Quality Check
1. Before delivery, we measure plate thickness, wave height, hole position, bolt set quantity, coating surface, and section label against the production drawing.
2. Joint parts are matched and counted before shipment, so field assembly does not wait for missing hardware.
3. The galvanized corrugated pipe is packed with edge protection and bundle labels to reduce coating damage during transport.
FAQ
Q: Can this pipe be used for deep cover?
A: Yes, but plate thickness, wave profile, span, and backfill design must match the cover depth.
Q: Is coating repair needed after cutting?
A: Cut edges and damaged coating areas should be touched up before burial.
Q: What is the main benefit of a galvanized corrugated pipe?
A: It combines steel strength, flexible assembly, and corrosion protection for drainage and buried passage use.
