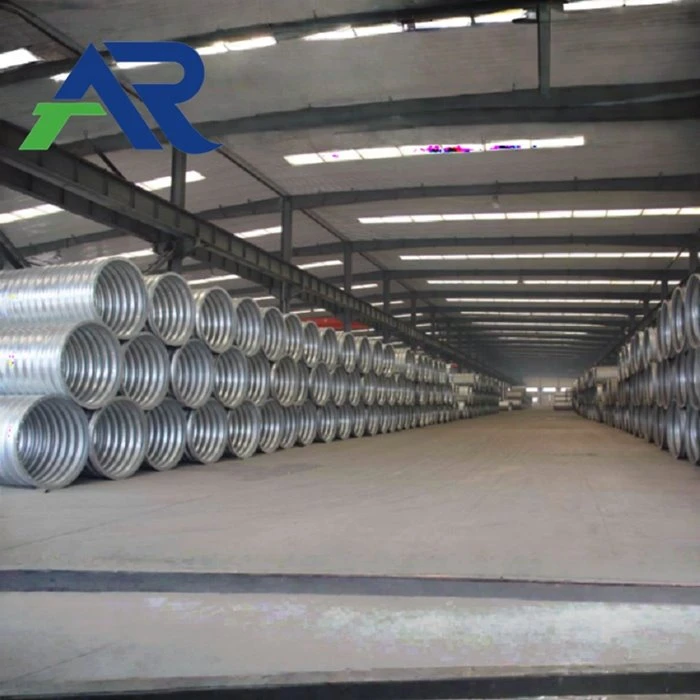

The galvanized culvert pipe is made from corrugated steel plates that are bolted or assembled into round, oval, or arch-shaped drainage structures. It is used under roads, railways, bridges, farmland access roads, municipal channels, and water passage projects. The corrugated wall gives the pipe higher ring stiffness than flat steel plate, so it can share soil pressure and traffic load with the surrounding backfill. Galvanized coating protects the steel from moisture and soil corrosion, while section design, plate thickness, span, and cover depth are selected by traffic load, water flow, soil type, and installation depth.
Product Parameters
|
Parameter |
Details |
|
Material |
Galvanized steel plate, weathering steel, or aluminum-zinc coated steel |
|
Shape |
Round, oval, pipe arch, or custom assembled section |
|
Span range |
About 0.5–15 m depending on design |
|
Cover depth |
Can be designed for shallow or deep buried road culvert use |
|
Coating |
Hot-dip galvanized layer, optional epoxy or asphalt protection |
|
Assembly |
Bolted plate sections or prefabricated pipe sections |
Main Applications
1. Used for highway and railway drainage where water must pass under the roadbed.
2. Suitable for rural road crossings, bridge culverts, and municipal rainwater channels.
3. The galvanized culvert pipe can replace some concrete culverts when faster installation and lighter transport are needed.
Product Advantages
1. Modular steel sections can shorten site work because no long concrete curing time is needed.
2. Corrugated shape improves stiffness and helps the pipe work together with compacted backfill.
3. Galvanized coating reduces early rust risk when the pipe is used in wet soil or seasonal water flow.
FAQ
Q: What affects pipe thickness?
A: Traffic load, cover depth, span, soil type, and water flow condition affect the plate thickness.
Q: Does installation need proper backfill?
A: Yes. Layered backfill and compaction are important because the pipe and soil work together.
Q: Can a galvanized culvert pipe be used in saline soil?
A: It can be used, but extra coating or material upgrade should be checked for high-corrosion soil.
