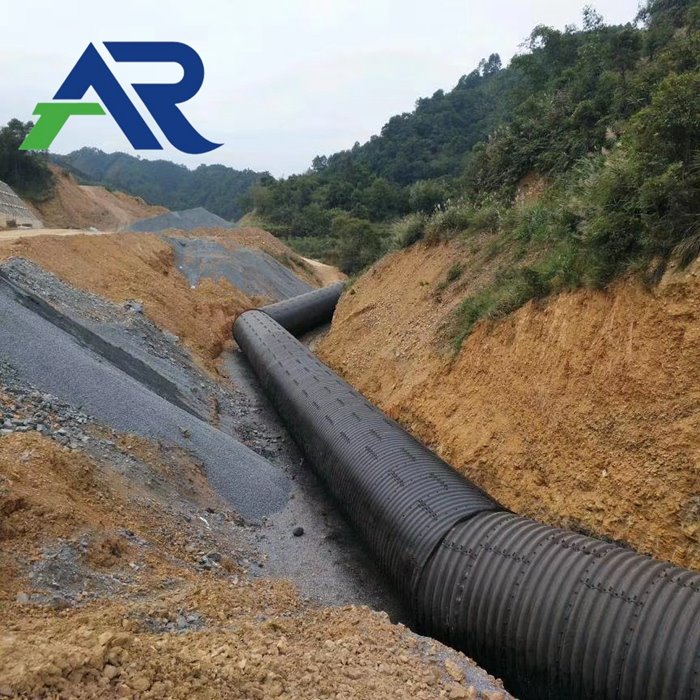

The corrugated steel pipe uses a ribbed steel wall to improve stiffness and load distribution. It is used in highways, railways, municipal drainage, mine access ways, farmland irrigation, and temporary diversion works. The pipe can be made from galvanized steel, stainless steel, aluminum alloy, or weathering steel according to soil and water conditions. The wavy structure allows the pipe body to work with compacted backfill, so correct bedding and side filling are important. Plate thickness, corrugation size, shape, and coating should be selected by cover depth, vehicle load, water speed, and corrosion risk.
Product Parameters
|
Parameter |
Details |
|
Material |
Galvanized steel, stainless steel, aluminum alloy, or weathering steel |
|
Shape option |
Circular, oval, arch, or custom plate-assembled section |
|
Main function |
Drainage, culvert crossing, underground passage, and seepage control |
|
Load design |
Matched to cover depth, traffic load, and soil pressure |
|
Anti-corrosion |
Galvanizing, epoxy resin, asphalt, or combined coating |
|
Assembly |
Bolted sections, flange joints, or lapped corrugated plates |
Project Details
1. For road crossings, hydraulic opening size should be checked before pipe diameter is confirmed.
2. For mine or municipal passages, inner clearance and maintenance access should be included in the drawing.
3. A corrugated steel pipe should not be selected only by diameter; cover depth, soil compaction, and live load also affect safety.
Product Advantages
1. Large-span corrugated steel pipe can be supplied as shorter pipe sections or bolted plate sections according to truck size, which reduces oversized transport risk for remote culvert sites.
2. The wavy steel wall helps transfer load to compacted backfill, so the pipe can handle small foundation movement better than rigid concrete in suitable soft soil areas.
3. Bolted assembly can shorten the open-cut period because workers do not wait for cast-in-place concrete curing before backfilling.
FAQ
Q: Can the pipe replace concrete culverts?
A: In many road and drainage projects it can, but load calculation and local design rules must be checked.
Q: What should be checked during backfill?
A: Both sides should be filled evenly and compacted in layers to control pipe shape.
Q: Is the corrugated steel pipe suitable for long-term burial?
A: Yes, when material, coating, drainage condition, and soil corrosion level are properly matched.
