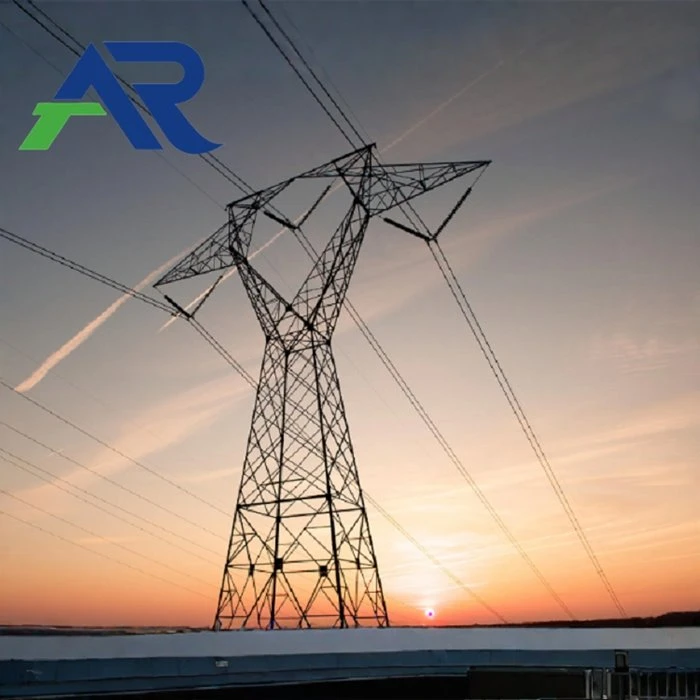

Metal power line tower is a steel structure used to support overhead power conductors. It carries the line load and keeps enough space between conductors, ground, roads, buildings, and other lines.
The tower is made from many cut, drilled, galvanized, and bolted members. Before shipment, the packing list needs to be clear because site crews often work in open land where missing bolts or wrong plates slow the whole route. A good package is almost as important as the tower body itself.
Product Parameters
|
Parameter |
Value |
|
Structure |
Angle steel / steel pipe / combined tower |
|
Height |
25-60 m by drawing |
|
Voltage |
10 kV to 500 kV common range |
|
Material grade |
Q235 / Q355 or project grade |
|
Surface treatment |
Hot-dip galvanizing |
|
Coating option |
Fluorocarbon paint for special sites |
|
Design life |
≥50 years by project design |
|
Installation |
Bolted assembly on foundation |
Product Advantages
The metal power line tower is practical for route projects because it can be prefabricated in many small members.
1. Small members are easier to galvanize and transport.
2. Bolt assembly reduces field welding.
3. Tower type can be changed for span and route angle.
Main Applications
A metal power line tower is used in distribution and transmission line work.
1. Power distribution routes near towns or plants.
2. High-voltage transmission lines over open land.
3. Line angle and terminal positions.
4. Substation entrance and exit structures.
Our Services
Tengshida can discuss drawing size, wind load, surface finish, packing method, and loading plan before production. For site projects, the work can also include drawing review, material confirmation, factory inspection photos, and basic installation notes.
FAQ
Q: Can it be made from steel pipe instead of angle steel?
A: Yes. A metal power line tower can use steel pipe, angle steel, or a combined form after design checking.
Q: Is galvanizing enough for all sites?
A: For many sites it is enough, but coastal or chemical areas may need more coating.
Q: What is checked before packing?
A: Member number, hole position, galvanizing surface, bolt quantity, and bundle marks are checked.
