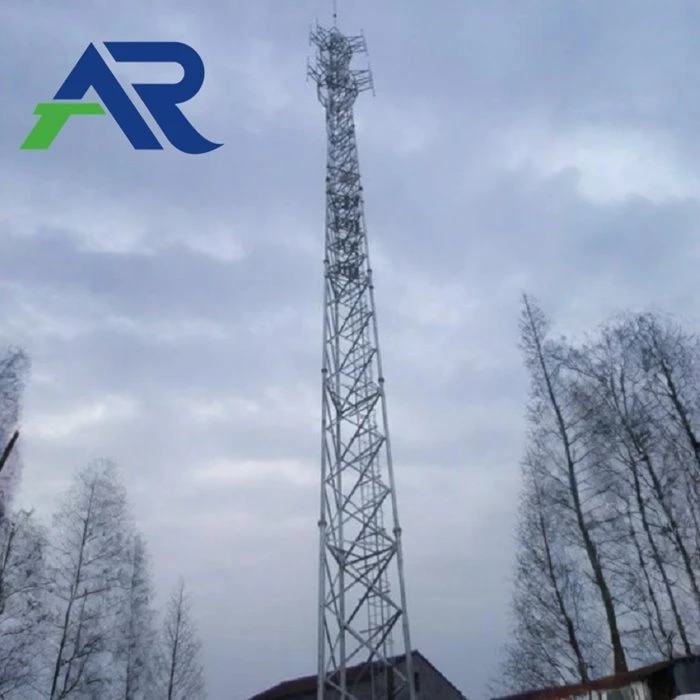

Our factory's mobile communication towers are specialized steel structures designed to provide elevated support for wireless communication antennas. The core function of these products is to expand signal coverage radii by increasing antenna mounting heights, while simultaneously providing a stable installation platform for communication equipment. The mobile communication towers produced by our factory do not themselves emit signals; consequently, their radiation levels remain far below established safety standards. Furthermore, they can be flexibly selected and deployed to suit a variety of environments, including suburban, urban, and mountainous regions.
Product Model
|
Parameter Category |
Specific Parameters |
Standard Values / Ranges |
Description |
|
Structure Type |
Angle Steel Tower |
Quadrangular or triangular cross-section; height: 10–60 m |
Robust structure and low cost; suitable for open areas such as suburbs and rural regions. |
|
Monopole Tower |
Circular or regular polygonal steel tubes; height: 15–50 m |
Clean aesthetic and minimal footprint; suitable for city centers and scenic areas. |
|
|
Guyed Tower |
With guy-wire supports; height: up to 80 m or more |
Requires minimal steel but demands ample space for guy wires; commonly used in mountainous terrain or for temporary sites. |
|
|
Three-Tube Tower |
Equilateral triangular cross-section, with main members consisting of equal-diameter steel tubes; height: 10–50 m |
Small footprint; suitable for confined spaces or areas adjacent to buildings. |
|
|
Material Specifications |
Main Structural Steel |
Q235,Q345 |
Constructed from high-strength, low-alloy steel, offering excellent wind and seismic resistance. |
|
Connection Bolts |
Grade 8.8 or 10.9 High-Strength Bolts |
Ensures secure node connections, with pre-tension and torque values strictly adhering to relevant standards. |
|
|
Anti-corrosion Treatment |
Hot-dip galvanized; zinc coating thickness ≥ 85 μm |
Effectively prevents corrosion and extends service life, making it particularly suitable for humid and coastal environments. |
|
|
Geometry and Deformation Control |
Base Spacing |
1/8 to 1/10 of the height |
Ensuring Tower Body Stability |
|
Slope |
≤1/1000 |
Key Verticality Criteria for Installation Acceptance |
|
|
Deflection |
≤ 1/750 of the height |
Maximum Permissible Deformation Under Load |
|
|
Environmental Adaptability |
Design Wind Speed |
30–40m/s |
Higher values are adopted for coastal regions, while lower values are used for inland areas. |
|
Seismic Design Intensity |
Seismic Intensity Zone 7 (0.10g) or Zone 8 (0.20g) |
Seismically active zones must satisfy more stringent seismic resistance requirements. |
|
|
Ice Accretion Thickness |
10–20 mm in severe cold regions, 5–10 mm in cold regions, and 0 mm in warm regions |
This factor influences structural load design and requires particular attention in northern regions.. |
|
|
Operating Temperature Range |
-45°C to +50°C |
The design meets the operational requirements of various climatic zones across the country. |
|
|
Electrical and Safety |
Grounding Resistance |
≤ 5 Ω (typically < 4 Ω) |
Ensure lightning safety and guarantee the effective discharge of lightning currents. |
|
Aviation Obstruction Light |
Installed at the tower top or at every 30-meter interval. |
Prevent aircraft collisions and comply with civil aviation regulatory requirements. |
|
|
Lightning Rod |
Located at the tower top and connected to the grounding grid. |
Provide protection against direct lightning strikes. |
Parameters and Safety Standards
Materials: Primarily constructed using high-strength steels such as Q235 and Q345, assembled via welding or bolted connections.
Corrosion Protection: Generally treated using a hot-dip galvanizing process, with a coating thickness of ≥85μm, ensuring a corrosion-resistant service life of over 20 years-even in harsh environments such as coastal regions or areas with high humidity.
Wind and Seismic Resistance: Designed to meet requirements for resisting Grade 12 winds and Magnitude 8 earthquakes; the tower structure is equipped with ancillary facilities including lightning rods, aviation obstruction lights, and maintenance access ladders.
FAQ
Q: Why choose us?
A: 1. We are a well-known factory in the industry in China with 20 years of production experience. 2. Quality control is carried out throughout the production process. 3. Comprehensive inspection before installation before packaging. 4. Our products are all ISO 9001 certified. 5. Provide full-process design, height: 25-40 meters (expandable to 60 meters); tower type: cat head tower, wine glass tower, dry word tower, etc.; interface reservation: compatible with OPGW optical cable, intelligent inspection robot track and other future upgrade needs. 6. Service: Installation: The factory prefabrication rate is 85%, and the on-site assembly of the 40-meter tower body only takes 7-10 days (including basic maintenance); Maintenance: Provide a "five-year inspection-free" package, monitor the tilt and rust data through the built-in sensors on the tower body, and reduce the annual maintenance cost by 60%.
